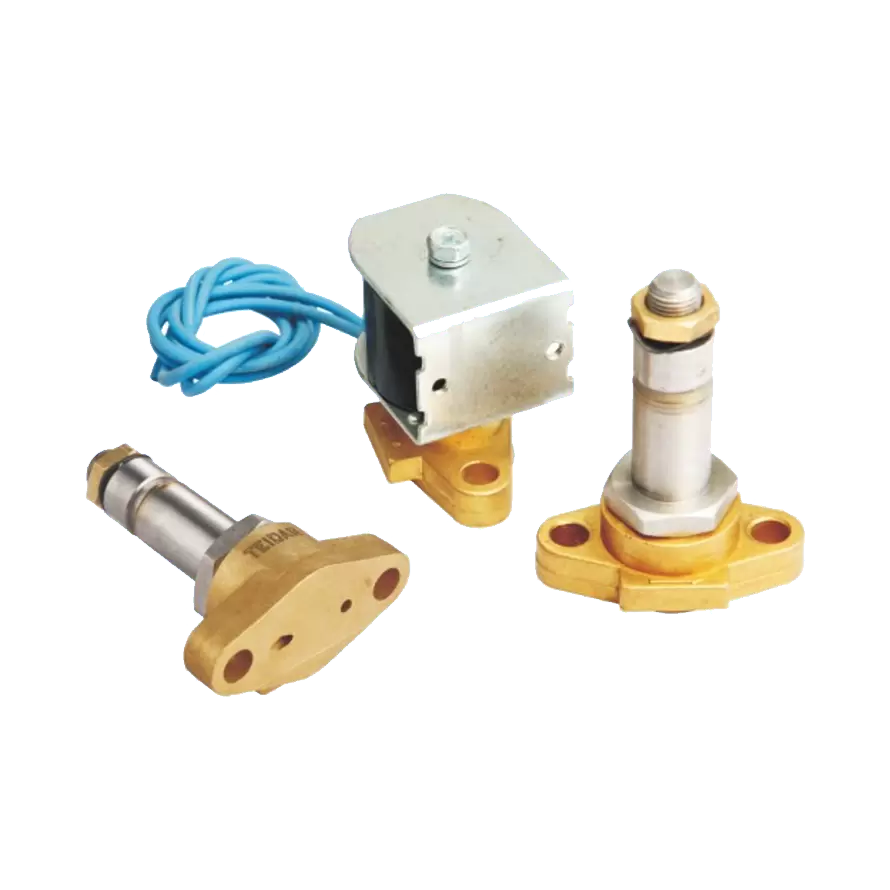

UNLOADING SOLENOID VALVE

Unloading solenoid valve is a direct-operated valve, which is applicable to one direction flow.

Unloading solenoid valve is used on the compressor of the freezer, cold store and air conditioning unit. lt will automatically unload in accordance with the decrease of heat load so that it coule save the compressor energy and extend the service life of compressor.

The valve seat of unloading solenoid valve is well sealed with perfect sealing performance.

Both packed and separated unloading solenoid valve are available and it means the valve body could be supplide separately from the solenoid.

Only NC type solenoid valve is avaiable.

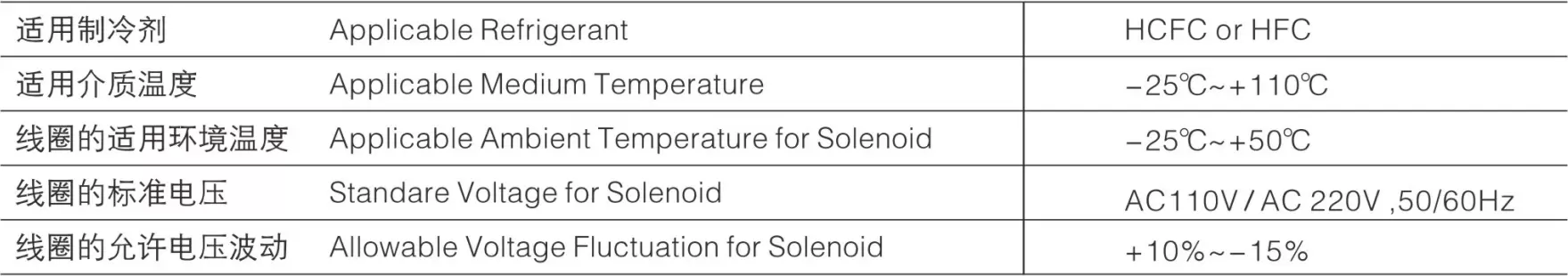

The max, design temperature is 110℃.

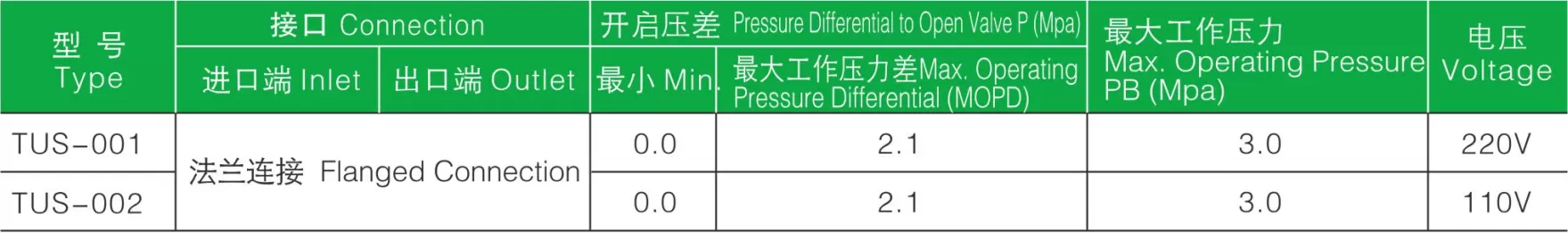

10W high power solenoid and max.operating pressure differential (MOPD )is 2.1Mpa.

It is applicable to various compressors in freezer, cold store and air conditioning unit.

The sealed solenoid has a long service life and it can be used even in an adverse circumstance.
