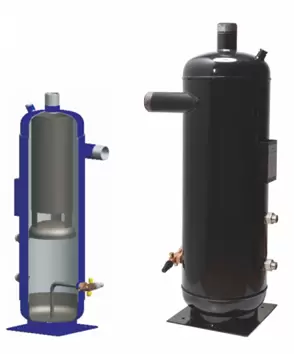

TDW series oil storage separator is used on parallel screw compressor, lt can achieve very good oil separation pur-pose in the lowest pressuree drop. lt can store the separated oil in the bottom of the vessel. And will send the oil to each compressor crankcase by the electronic oil level regulator relyed with pressure diferential.
* WeChat is the same as your phone number, and you can also add WeChat for communication
TDW series oil storage separator is used on parallel screw compressor. lt can achieve very good oil separation pur-pose in the lowest pressuree drop. it can store the separated oil in the bottom of the vessel, And will send the oil to each compressor crankcase by the electronic oil level regulator relyed with pressure differential.
Integrated oil reservoir,Which will save a lot of time and material, also reduce the leaking problem.
Help to reduce the vibration and noise that caused by compressor.
Need to add the electronic oil level regulator to replace of the valves.
Max.working pressure: 3.0MPa.
Good efficiency oil separation.
Compatible with all CFC, HCFC and HFC refrigerants and oils.
Working temperature range:-40℃~120℃
