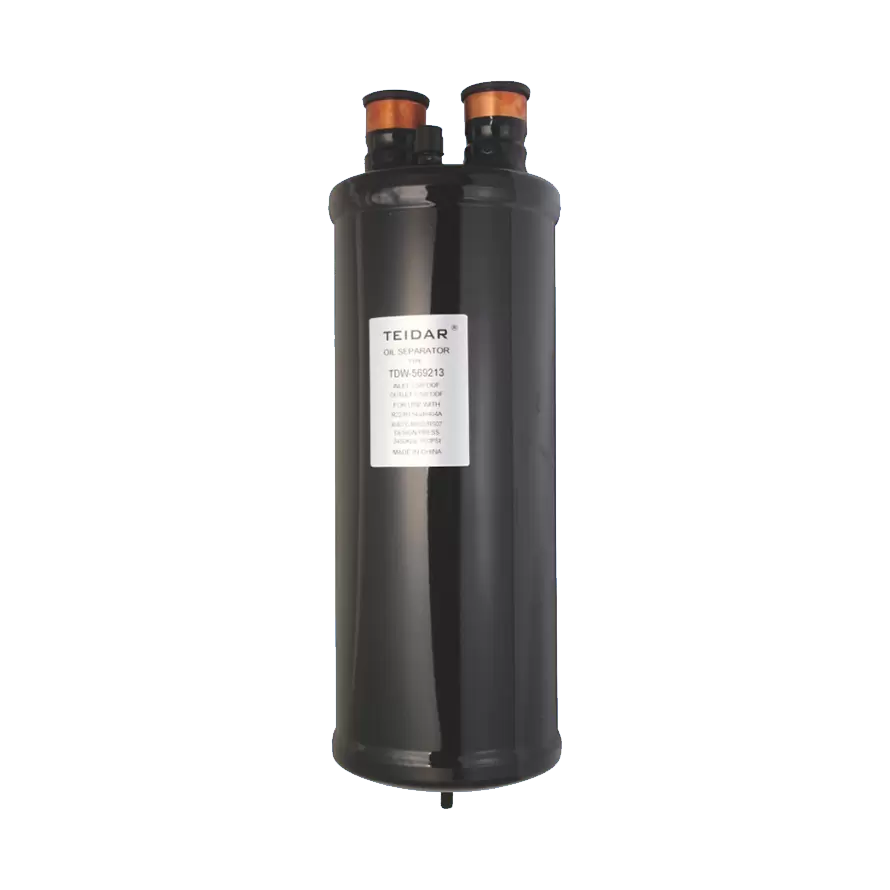

The helical oil separator features a centrifugal flow path achieving approximately 99% efficiency of oil separation with low pressure drop. Testing by an independent laboratory found that only 0.006% oil by volume was being discharged into the system after leaving a helical oil separator.
TElDAR helical oil separator can help to reduce the vibration and noise that caused by compres-sor.
While the parallel compressor system in unload-ing energy or changing, it still can keep the high oil separation efficiency,because of special design by TElDAR for the helical flighting.
* WeChat is the same as your phone number, and you can also add WeChat for communication
The helical oil separator features a centrifugal flow path achieving approximately 99% efficiency of oil separation with low pressure drop. Testing by an independent laboratory found that only 0.006% oil by volume was being discharged into the system after leaving a helical oil separator.
TElDAR helical oil separator can help to reduce the vibration and noise that caused by compres-sor.
While the parallel compressor system in unload-ing energy or changing, it still can keep the high oil separation efficiency,because of special design by TElDAR for the helical flighting.

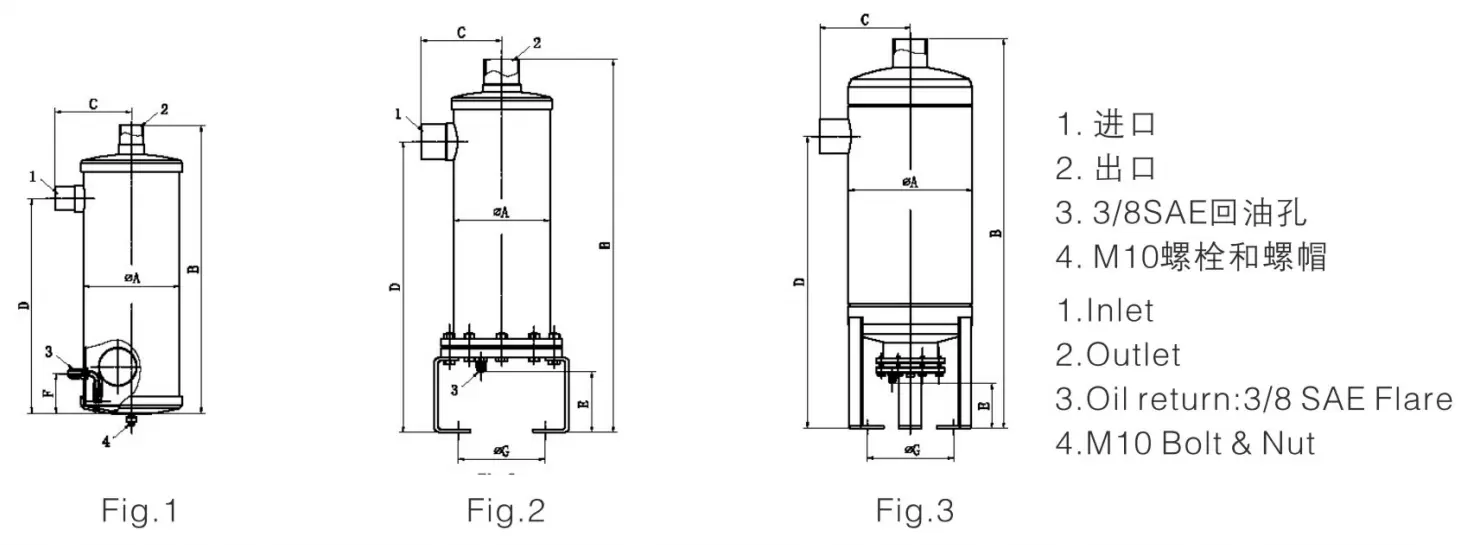

Before install the oil separator, oil pre-charge is required. The charging oil should be kept on above of the oil tank.
To pre-charge the oil is very important, this can avoid damaging the needle valve. And the oil we charged musi same as the oll in the crankcase. he ol separator shouid be installed on the outlet ine which between the com-pressor and condenser.
A check valve should be located downstream of the outlet connection. This check valve is to prevent liquic refrigerant migrating from the condenser, and with properly pipe disposed, The oil separator must be installec vertically. Proper piping practice should be adopted to prevent excessive loads or vibration at the inlet and out-let connections.
