LIQUID LINE FILTER DRIER

Solid core can avoid having dust.

Has soldering and flaring connection for choosing.

High dirt retention, down to 25 μm particles, with minimal pressure drop.

Highly corrosion-resistant powder coating finish. Can be used in all environments, includina marine application.

TEM filter drier was designed for the high water absorbent capacity application. Without activated alumina, so that the oil will not be used up.

TEC filter drier is suitable for the system which operating in the high condensation temperature and high dry capacity.

Online Consultation

139-1620-9256

Call the hotline to learn more

Product Manual

* WeChat is the same as your phone number, and you can also add WeChat for communication

Introduction

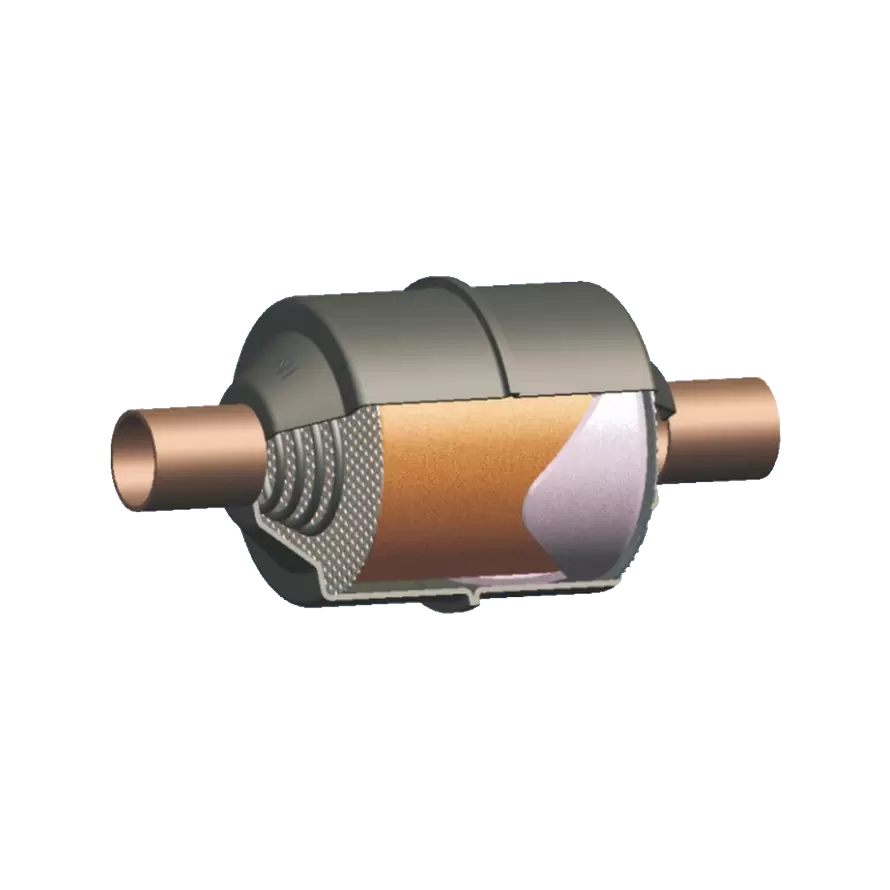

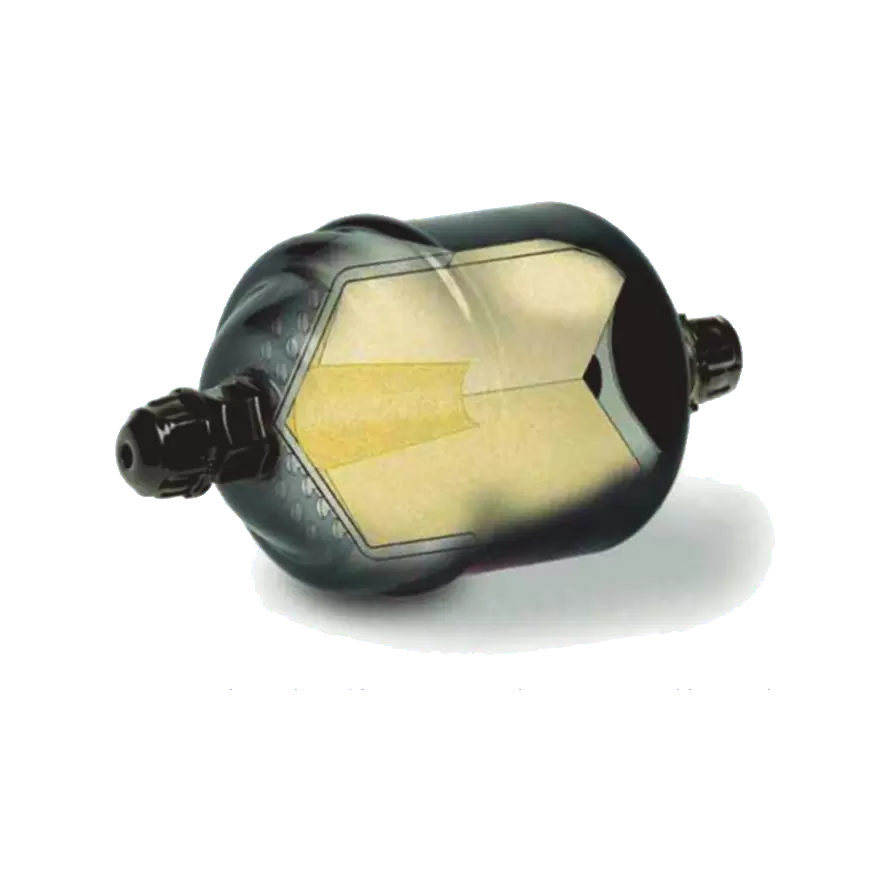

TEM/TEC liquid line filter driers protect refrigeration and air conditioning systems from moisture, acids and solid particles. The TEM/TEC filter dri-ers are designed with a solid core. TEM is with 100% molecular sieve, and TEC is with 80% molecular sieve and 20% activated alumina.

Feature

Solid core can avoid having dust.

Has soldering and flaring connection for choosing.

High dirt retention, down to 25 μm particles, with minimal pressure drop.

Highly corrosion-resistant powder coating finish, Can be used in all environments, including marine application.

TEM filter drier was desianed for the high water absorbent capacity application. Without activated alumina, so that the oil will not be used up.

TEC filter drier is suitable for the system which operating in the high condensation temperature and high dry capacity.

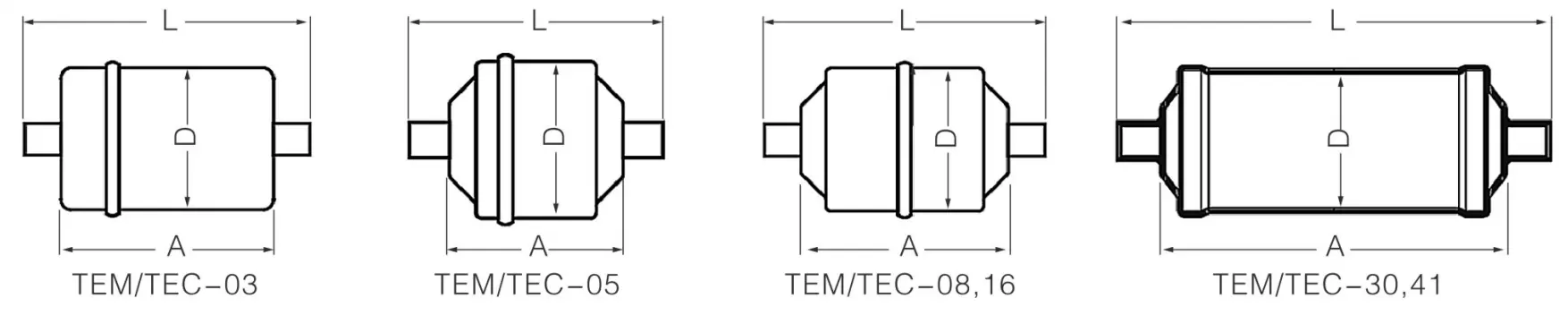

2D Image

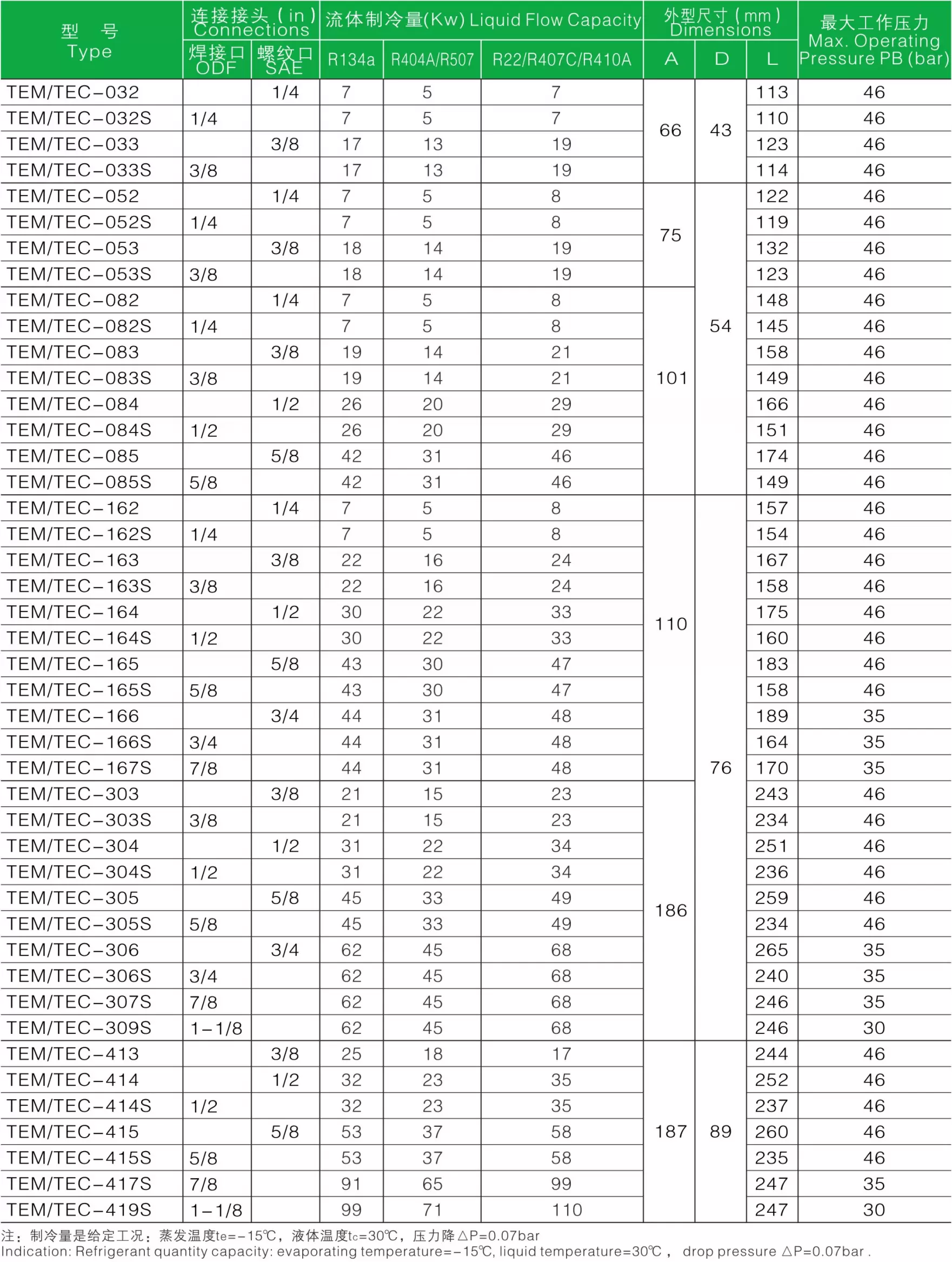

Technical Specifications
