HELICAL DEHAZING OIL SEPARATOR

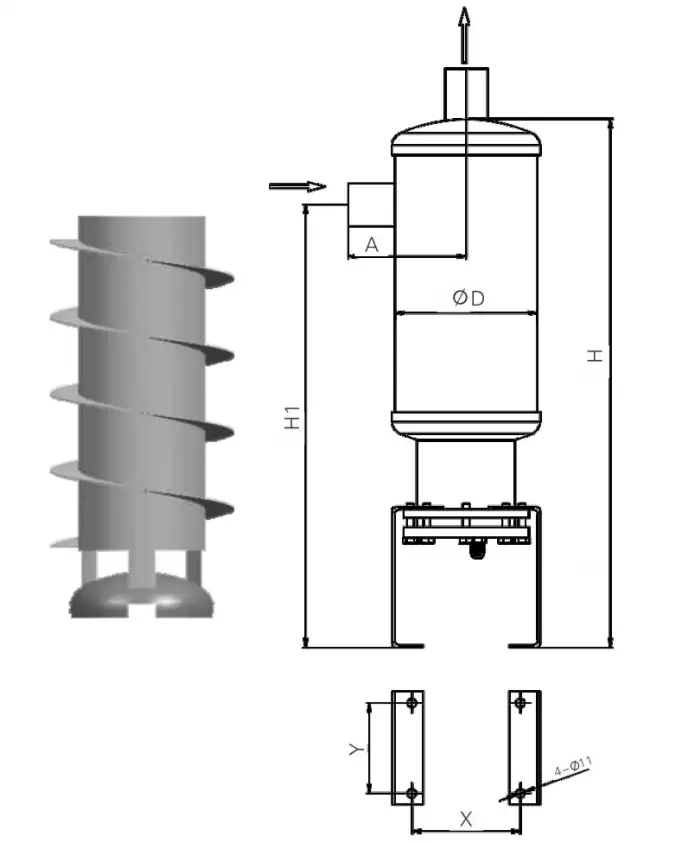

TDW_66SG series helical oil separator features a centrifugal flow path achieving very good oil sepa-ration effect with lowest pressure drop.

Inside of the oil separator there is a demister which is knitted by stainless steel wire. So it engender a barrier to capture the oil in fog form. This barrier makethe oil in fog form chaotic and they collide and get together with each other, and then they will be adsorbed by the demister and final become oil drop. The oil drop will fall into the oil collection area at the bottom of the oil separator by gravity action.

It has a flange on the bottom, so it is quite conve-nient to clean the drughill inside of it, And there is a piece of permanent magnet on the flange with which can adsorb the scrap iron entered into the oil sepa-rator.

Maximum working pressure: 3.5Mpa(35 Bar)

Working temperature:-10℃~+120℃

Applicative refrigerants:R134a,R407C,R404A,R507A
