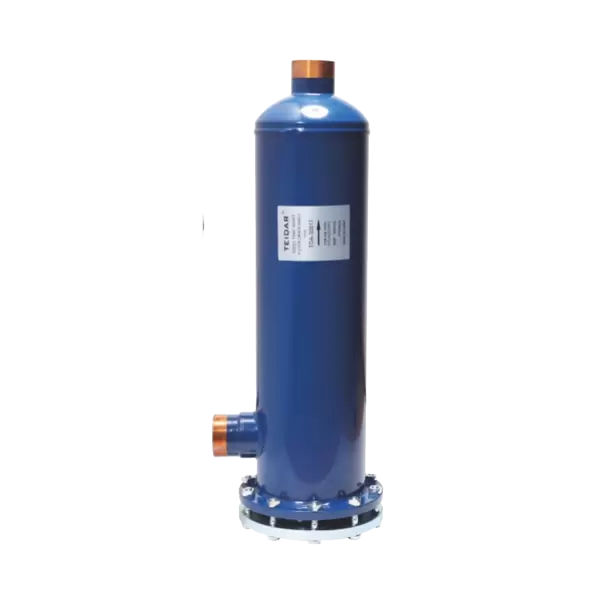

DRY AND SUCTION DEMOUNTABLE DRIER

Can be matched well with all brands of 48 & 100 series of Line Filter Blocks and Suction Line filter cores

Full flow fittings of low pressure drop

Sturdy steel shells for long life

100 mesh outlet screen

Corrosion resistant epoxy powder paint finish

Maximum working pressure:4.5Mpa

Online Consultation

139-1620-9256

Call the hotline to learn more

Product Manual

* WeChat is the same as your phone number, and you can also add WeChat for communication

Introduction

The demountable drier is installed in the suction line of a new system. This prevents harmful contaminants from enter-ing into the compressor as an enhanced protection in prolongina the ife of compressor. This replaceable suction filte is especlally sultable tor use in condllons where motor damage has occurred or heavy ingress ot water in the system. It has superb cleaning and absorption capabilities.(To be equipped the available core)

Feature

Oven-dried before packaging in order to be perfectly dried

Efficient whichever the refrigerant flow direction

Packaged in sealed metallic cans

Removal ability for high moisture and acid in special environment

Can protect the normal system and clean up the compressor

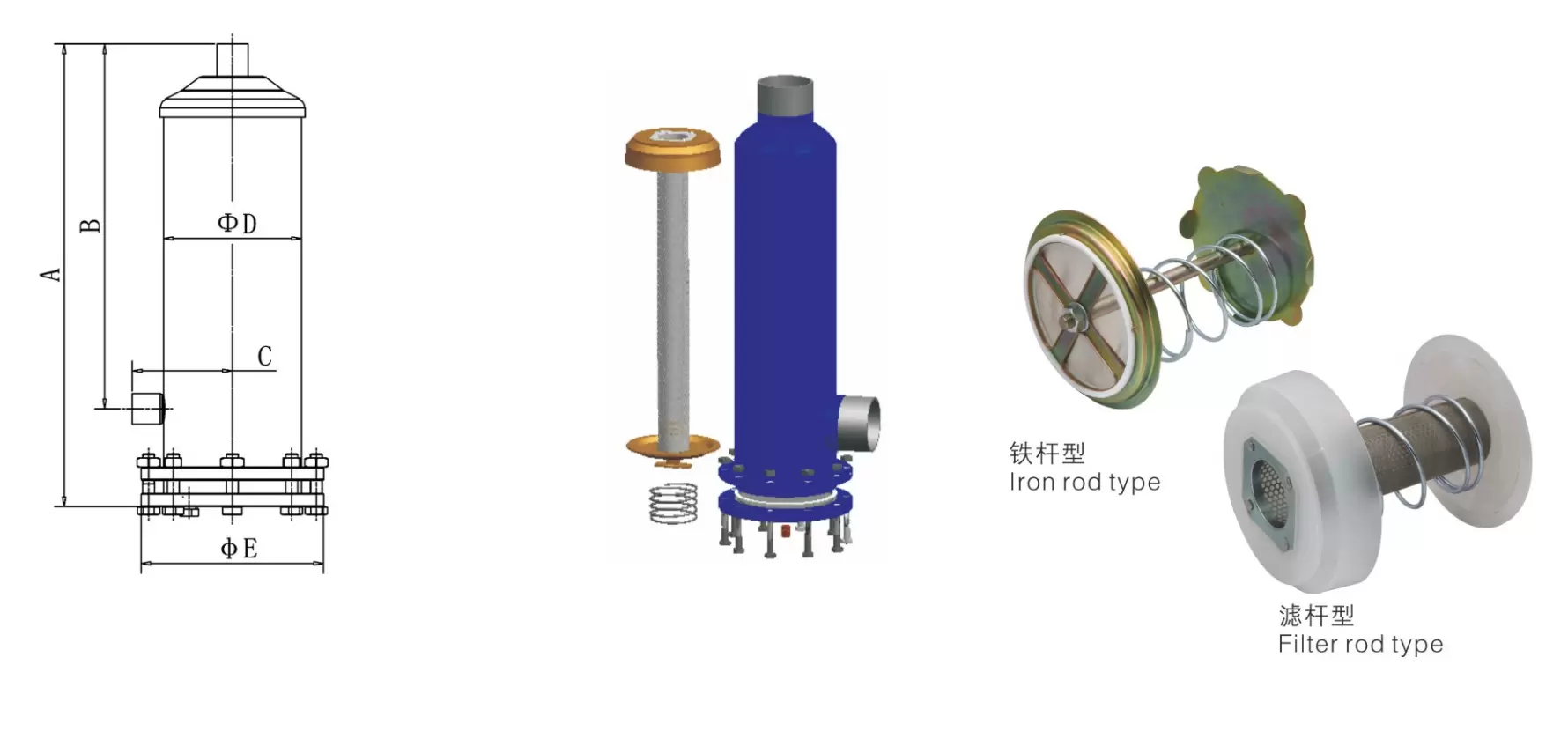

2D Image

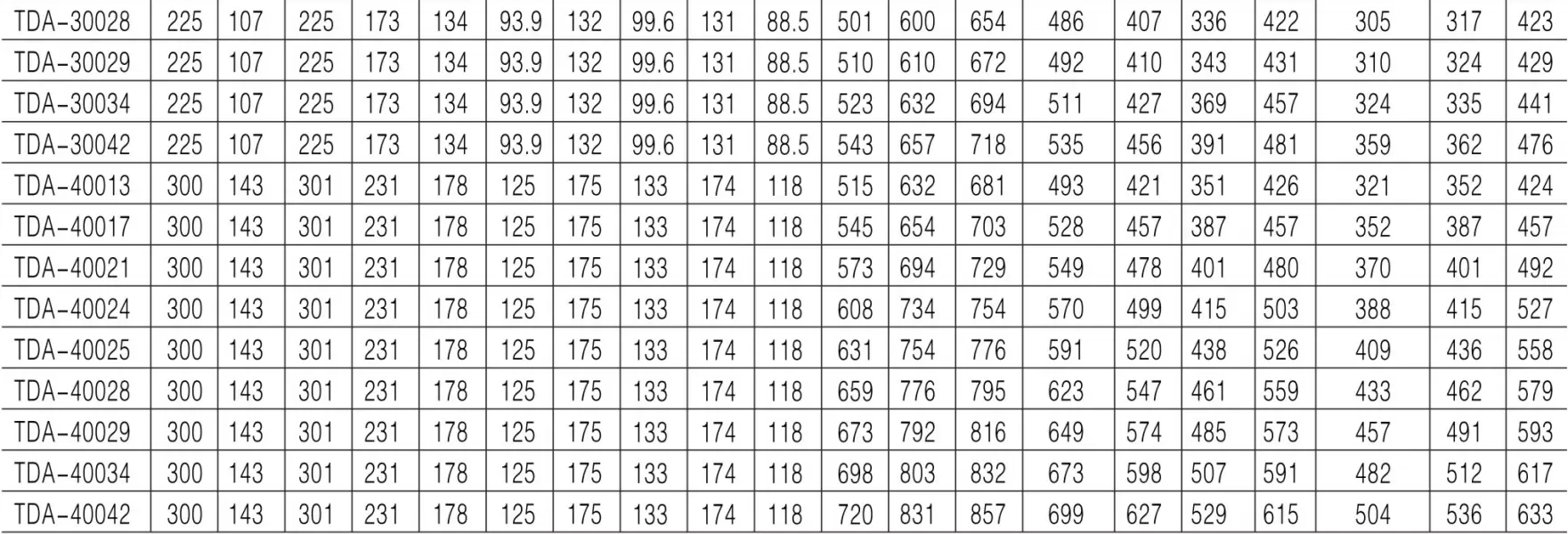

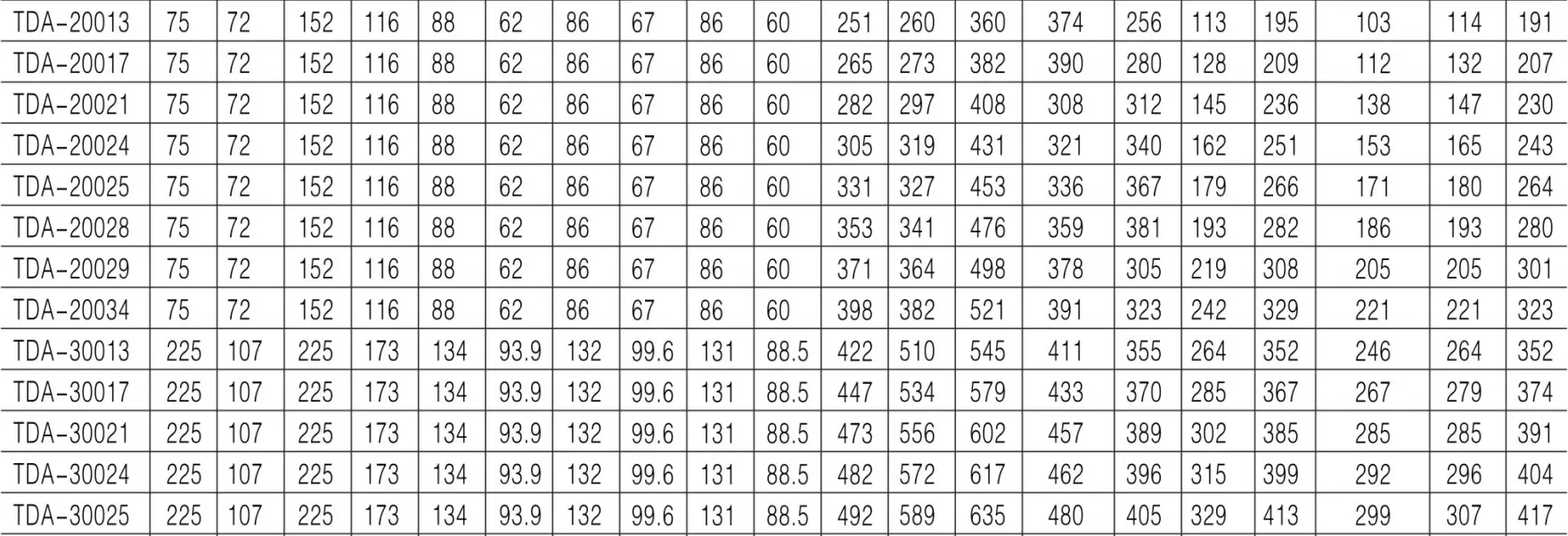

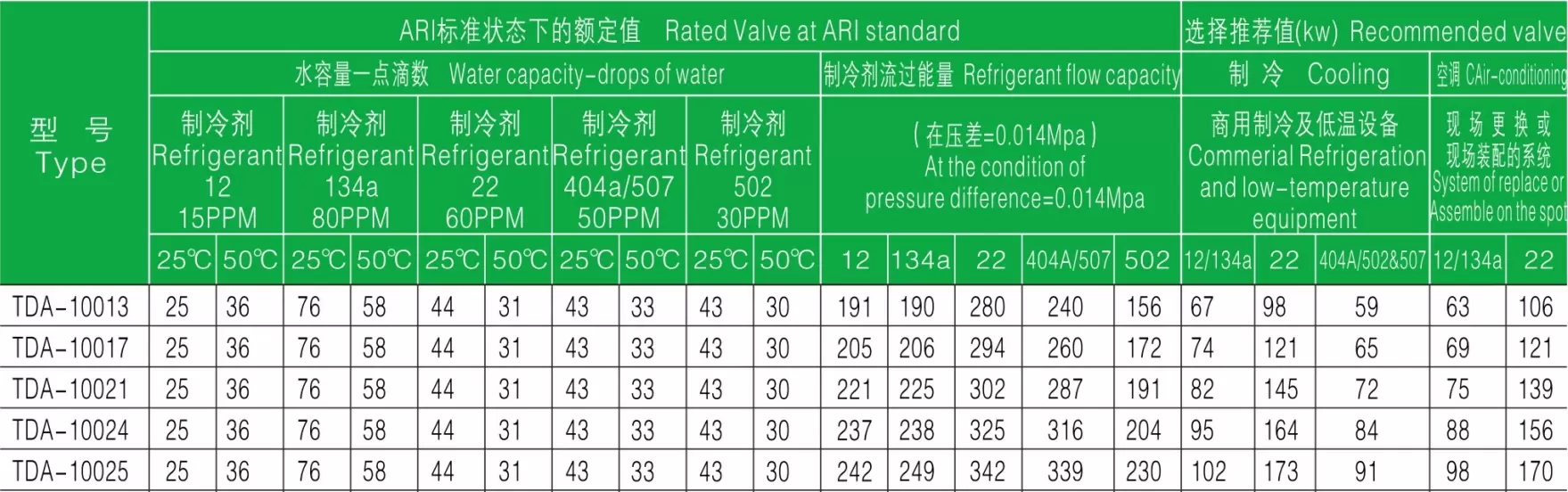

Technical Specifications
