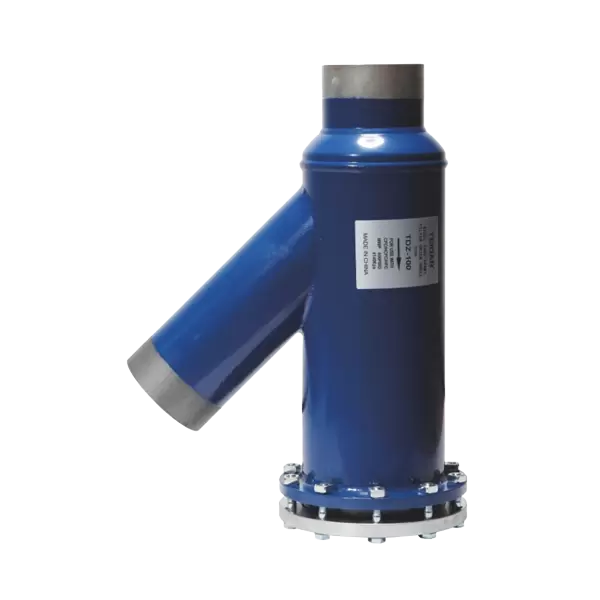

FLUORINE PUMP FILTER

Fluorine pump filters are carefully designed to give favorable flow conditions. The design makes the filter easy to install, and ensures quick filterinspection and cleaning.They are used ahead of automatic controls, pumps, com-pressors etc. for initial plant start-up and where permanent filtration of the refrigerant is required. The filter reduces the risk of undesirable system breakdowns and reduces wear and tear on plant components.

Sizes: filter elements have4 sizes 100μ,150μ,250μ,500μ(150, 100, 72, 38 mesh)

Applicable medium: ammonia, fluorine, propane, propylene, etc.

Applicabletemperature:-50~+150℃

Max.working pressure: 40 bar

Filter housing material: special low temperature steel,which can operate in low temperature.
