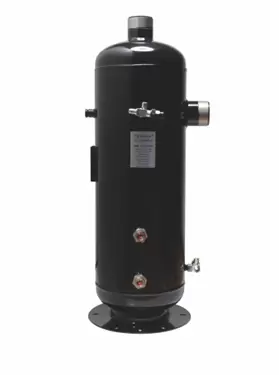

OIL SEPARATOR RESERVOIR

Drastic reduction of piping lengths and numbers of components

lmportant reduction of mounting time

Limitation of the risk of leak

Two sight glasses with color balls on the reservoir part,for better reading of oil level

Online Consultation

139-1620-9256

Call the hotline to learn more

Product Manual

* WeChat is the same as your phone number, and you can also add WeChat for communication

Introduction

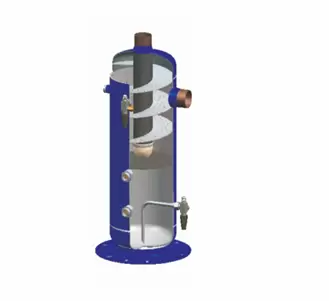

The function of a helical oil separator-reservoir is to remove and store oil from the discharge gas so that it can be returned to the compressor. lt can achieve very good oil separation performance by very low pressure drop. The captured oil is retained in the oil reservoir in the lower portion of the oil separator. The oil is fed from the oil reservoir to the oil regulator and into the crankcase until the set oil level is attained. lt can be used in variety applications, common application include multi-compressor racks, and it’s intended for high pressure oil management systems, high pressure electronic oillevel regulator should support to be equipped.

Feature

Integrated oil reservoir

Low pressure drop

High oil separation efficiency-up to 99%

ODS refrigerant connections

SAE flare Rotalock valve oil connection

Compatible with CFC, HCFC and HFC refrigerants

Max.Working pressure: 31 bar

Working temperaturerange:-40℃~+120℃

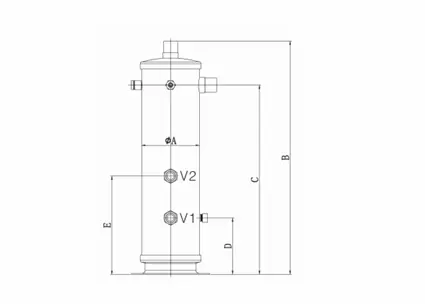

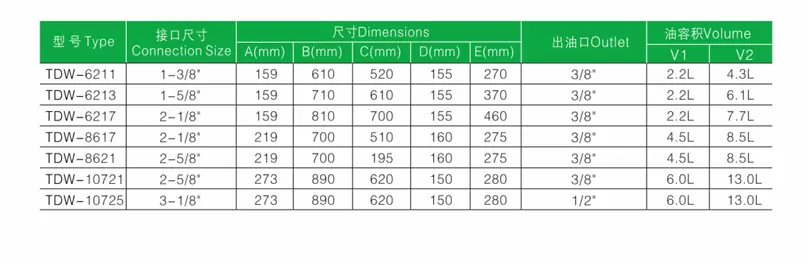

Technical Specifications
